Suburban Furnace Cabinet Assembly – SFV-42Q/42FQ | Part #102439 - Special Order

Genuine Suburban Replacement Cabinet Assembly for SFV-42Q & SFV-42FQ RV Furnaces

Restore your Suburban SFV-42Q or SFV-42FQ vertical-mount RV furnace to full working condition with this genuine OEM cabinet assembly. The cabinet houses your furnace's core components and duct connections — if your existing cabinet is cracked, corroded, dented, or damaged beyond repair, this direct replacement restores a proper, secure housing for your furnace system. Built specifically for the 42,000 BTU vertical-mount SFV-Q series, this cabinet assembly supports the multi-duct configuration these low-profile, high-efficiency furnaces are known for.

Compatible With:

• Suburban SFV-42Q (42,000 BTU vertical mount furnace)
• Suburban SFV-42FQ (42,000 BTU vertical mount furnace, flush-mount door variant)

Not compatible with: Suburban SFV-35Q/35FQ — these models use a different cabinet assembly (part #102437). Confirm your exact model number before ordering, since the 35Q and 42Q cabinets are not interchangeable.

Key Features:

• Genuine Suburban OEM replacement part
• Supports up to three 4" round duct connections off the cabinet front
• Compatible with both direct-discharge and ducted installation configurations
• Designed specifically for the SFV-Q series' compact, 7-1/2" low-profile footprint

How to Confirm This Is the Right Cabinet for You

Check your furnace's data plate (typically attached to the furnace assembly itself) to confirm your exact model number — SFV-42Q or SFV-42FQ. This cabinet is specific to the 42,000 BTU version; the 35,000 BTU SFV-35Q/35FQ models use a different cabinet assembly (#102437) that is not interchangeable with this part. If you're unsure which model you have, or can't locate your data plate, contact us with your furnace's other visible markings and we'll help confirm fitment.

Frequently Asked Questions

What's the difference between this and the SFV-35Q cabinet?
The SFV-35Q/35FQ cabinet assembly (#102437) is sized for the 35,000 BTU furnace, while this cabinet (#102439) is sized specifically for the 42,000 BTU SFV-42Q/42FQ models. They are not interchangeable — ordering the wrong one will result in a mismatched fit.

Does this cabinet include the cabinet front panel?

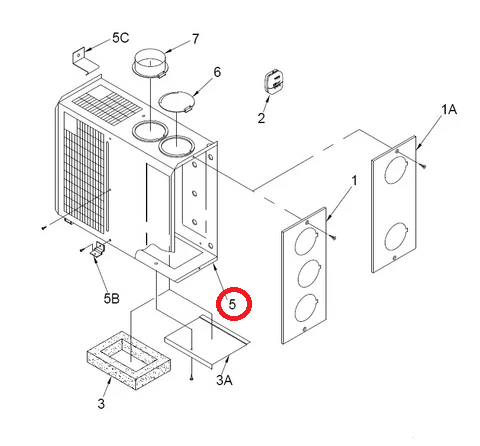

No — the cabinet assembly and cabinet front are sold as separate parts on Suburban's parts diagram. If your cabinet front (3-hole panel) is also damaged, you'll need to order it separately (part #101242).

Will this work with a bottom duct installation?
Yes — but if you're using the bottom duct, you'll need Suburban's Bottom Duct Kit (part #520753) in addition to this cabinet, and the discharge cover plate (#063581) must be removed before installation. If you are NOT using the bottom duct, that discharge cover plate must remain in place.

How many duct connections does this cabinet support?
The SFV-42Q/42FQ cabinet front supports up to three 4" round ducts, offering more ducting flexibility than the smaller SFV-20/25/30Q models, which support two.

Is this furnace 12V or does it need external power?
Suburban SFV-Q series furnaces operate on 12-volt DC power only, supplied by your RV's battery or converter system. This furnace is designed for negative-ground 12V DC systems only — it should never be wired to a positive-ground system or connected directly to 120V AC.

Can I install this myself, or do I need a professional?
Replacing a furnace cabinet assembly involves disconnecting gas and power supply lines and removing the furnace chamber — if you're not experienced with RV appliance repair, we recommend having a qualified RV technician complete this installation.

Special Order – Non-Stock Item

Please note: This is a special order item.

• This is a non-stock item ordered directly through Suburban/Airxcel upon purchase
• Lead times may vary based on manufacturer availability — contact us for current estimated timing
• Special order items are non-cancelable and non-returnable once the order has been placed with the manufacturer, except in the case of a warranty issue or shipping damage
• Orders containing both in-stock and special-order items may ship separately or be held until all items are available
